CONN RCPT 10P 0.02 GOLD EDGE MNT

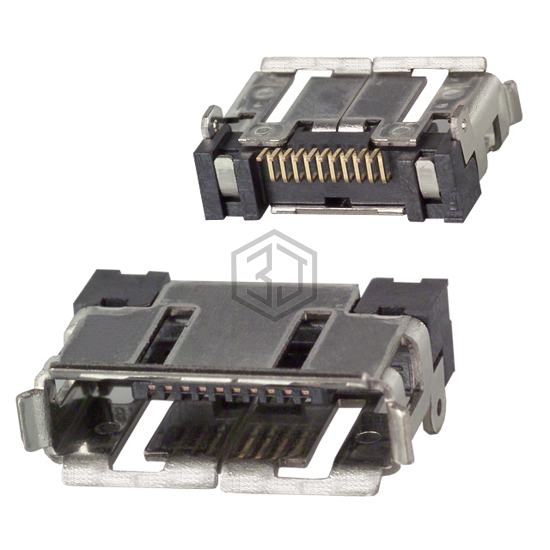

ST60-10P(30) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 10P 0.02 GOLD EDGE MNT. Key specifications: mounting type Board Edge, Surface Mount, Right Angle, operating temperature -30°C ~ 80°C, voltage rating 100VAC, current rating (amps) 0.5A.
In Stock: 33,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Non-Gendered |
| Style | Board to Cable/Wire |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.020" (0.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.118" (3.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -30°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Shielded |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 100VAC |
