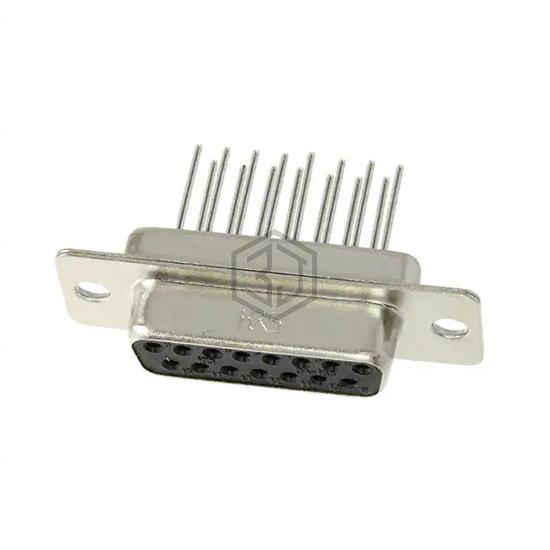

CONN D-SUB RCPT 15P PNL MNT SLDR
SDAG-15S(55) is a D-Sub Connectors manufactured by Hirose Electric Co Ltd. CONN D-SUB RCPT 15P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 3A, termination Solder, number of positions 15.
In Stock: 72
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | - |
