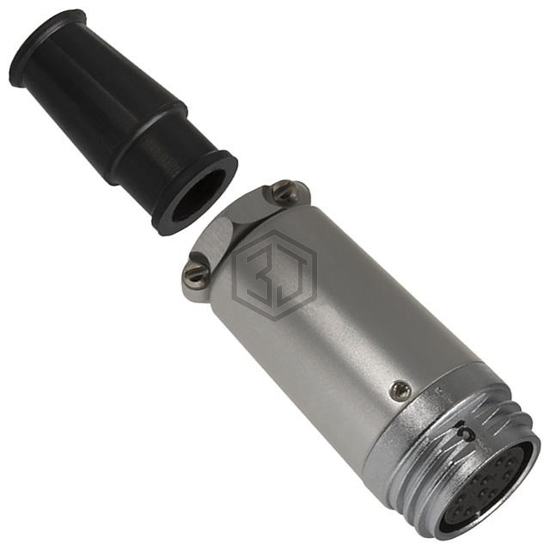

CONN JACK FMALE 10P SOLDER CUP
RM15TJD-10S(71) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN JACK FMALE 10P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 350VAC, 490VDC, color Silver.
In Stock: 370
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Jack, Female Sockets |
| Number of Positions | 10 |
| Shell Size - Insert | 15 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Chrome |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Strain Relief |
| Shielding | - |
| Current Rating (Amps) | 5A |
| Voltage Rating | 350VAC, 490VDC |
| Cable Opening | 0.386" (9.80mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for RM15TJD-10S(71) and get a quote within 24 hours.
