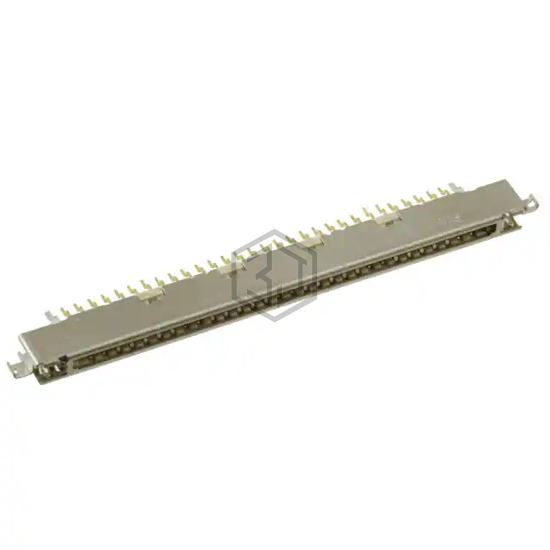

CONN RCPT 30P 0.039 GOLD SMD R/A
MDF76TW-30S-1H(55) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 30P 0.039 GOLD SMD R/A. Key specifications: mounting type Board Cutout, Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 200VAC, current rating (amps) Varies by Wire Gauge.
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Board Cutout, Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Insulation Color | Beige |
| Insulation Height | - |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 200VAC |
Submit your RFQ for MDF76TW-30S-1H(55) and get a quote within 24 hours.
