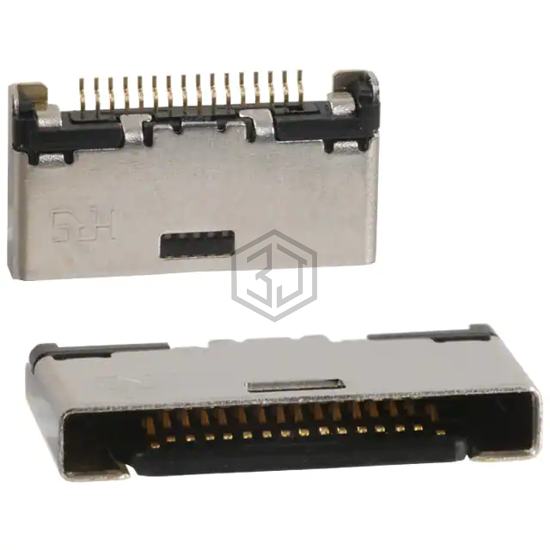

CONN RCPT 16P 0.02 GOLD SMD R/A
LX60-16S is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 16P 0.02 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 70°C, voltage rating 50VAC, current rating (amps) 0.5A.
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.020" (0.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Insulation Color | Black |
| Insulation Height | 0.079" (2.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 70°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50VAC |
Submit your RFQ for LX60-16S and get a quote within 24 hours.
