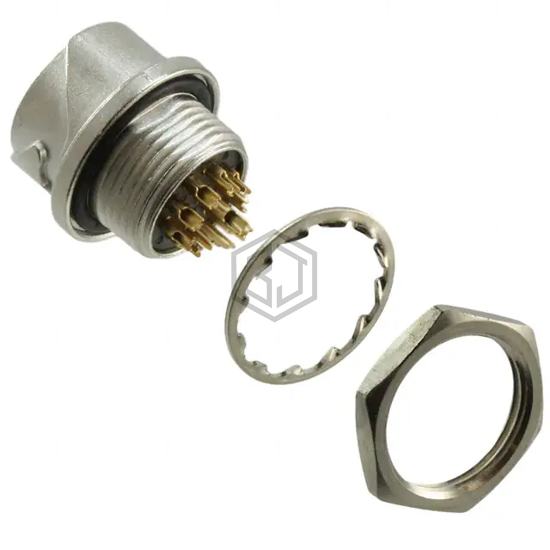

CONN RCPT FMALE 12P SOLDER CUP
LF10WBR-12S is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN RCPT FMALE 12P SOLDER CUP. Key specifications: mounting type Panel Mount, operating temperature -25°C ~ 85°C, voltage rating 30VAC, 42VDC, color Silver.
In Stock: 523
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 12 |
| Shell Size - Insert | 10 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | - |
| Shielding | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 30VAC, 42VDC |
| Cable Opening | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for LF10WBR-12S and get a quote within 24 hours.
