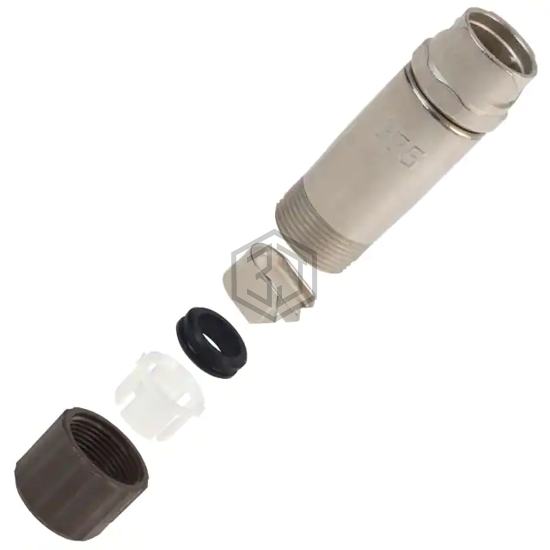

CONN JACK MALE 12P GOLD SLDR CUP
LF10WBJ-12P is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN JACK MALE 12P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 30VAC, 42VDC, color Brown, Silver.
In Stock: 138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack, Male Pins |
| Number of Positions | 12 |
| Shell Size - Insert | 10 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Brown, Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Clamp, Strain Relief |
| Shielding | Shielded |
| Current Rating (Amps) | 2A |
| Voltage Rating | 30VAC, 42VDC |
| Cable Opening | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for LF10WBJ-12P and get a quote within 24 hours.
