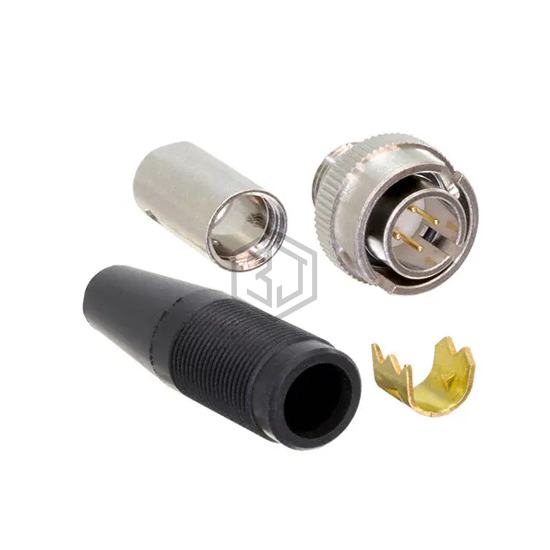

CONN PLUG MALE 4P GOLD SLDR CUP
KMC9BPD-4P(31) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG MALE 4P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 100VAC, 140VDC, color Black, Silver.
In Stock: 51
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 4 |
| Shell Size - Insert | 9 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | Water Resistant |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | 1A |
| Voltage Rating | 100VAC, 140VDC |
| Cable Opening | 0.236" (6.00mm) |
| Operating Temperature | -25°C ~ 85°C |
