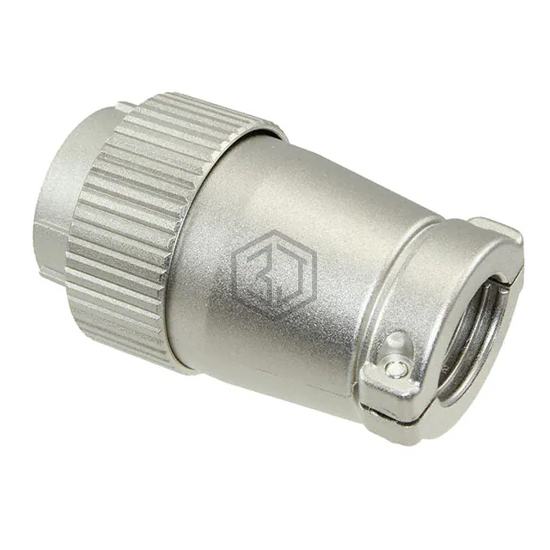

CONN PLUG FMALE 4P SOLDER CUP
JR25PH-4S is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG FMALE 4P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 1000VAC, 1400VDC, color Silver.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | 25 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 30A |
| Voltage Rating | 1000VAC, 1400VDC |
| Cable Opening | 0.709" (18.00mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for JR25PH-4S and get a quote within 24 hours.
