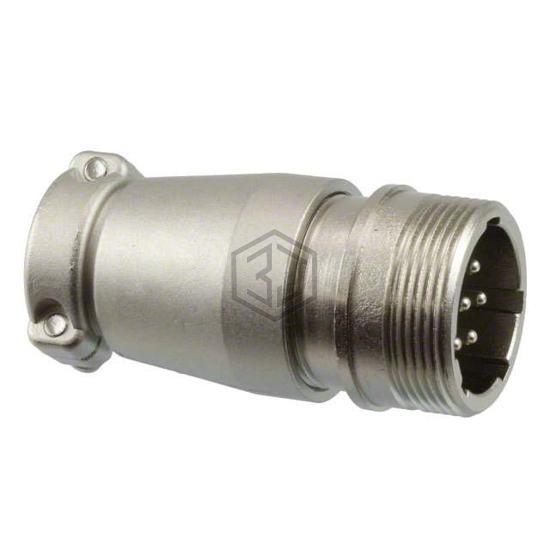

CONN JACK MALE 7P SILV SLDR CUP
JR16JK-7P is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN JACK MALE 7P SILV SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 250VAC, 350VDC, color Silver.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack, Male Pins |
| Number of Positions | 7 |
| Shell Size - Insert | 16 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp |
| Shielding | Unshielded |
| Current Rating (Amps) | 10A |
| Voltage Rating | 250VAC, 350VDC |
| Cable Opening | 0.453" (11.51mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for JR16JK-7P and get a quote within 24 hours.
