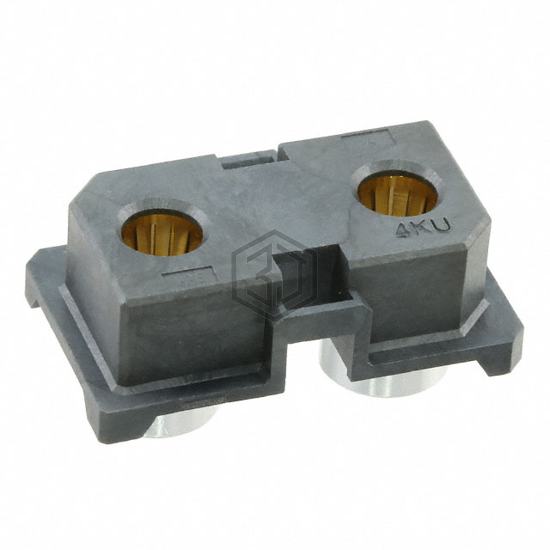

CONN RCPT 2POS 0.472 GOLD PCB
IT-PD-2S-DIR is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 2POS 0.472 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating 300V, current rating (amps) 60A per Contact.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.472" (12.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.291" (7.40mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 11mm ~ 44mm |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 60A per Contact |
| Voltage Rating | 300V |
Submit your RFQ for IT-PD-2S-DIR and get a quote within 24 hours.
