CONN HEADER 2POS 12MM

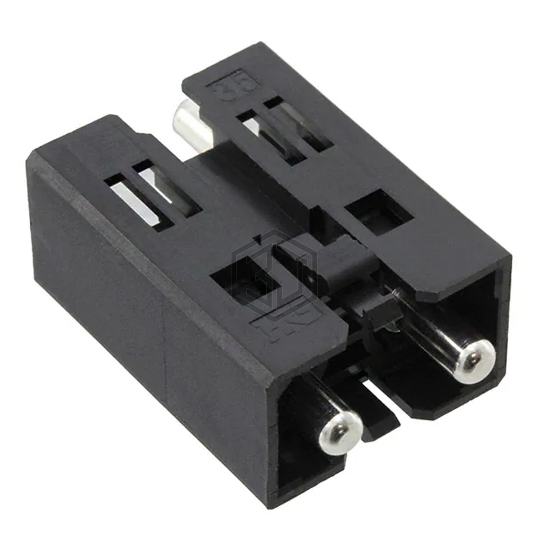

IT-P-2P-35H(11) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER 2POS 12MM. Key specifications: mounting type Stacking, operating temperature -55°C ~ 85°C, voltage rating 300V, contact material Copper Alloy.
In Stock: 75
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Interposer |
| Contact Type | Male Pin |
| Pitch - Mating | 0.472" (12.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Stacking |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.787" (19.99mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 60A per Contact |
| Voltage Rating | 300V |
Submit your RFQ for IT-P-2P-35H(11) and get a quote within 24 hours.
