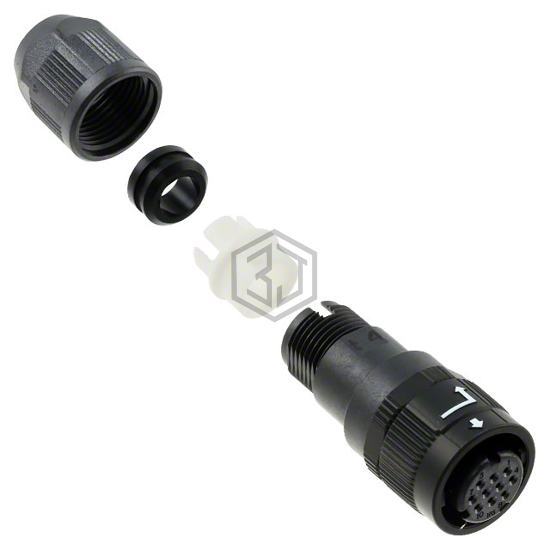

CONN PLUG FMALE 10P SOLDER CUP
HR34B-12WPD-10S is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG FMALE 10P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 125°C, voltage rating 200VAC, 250VDC, color Black.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 10 (Power) |
| Shell Size - Insert | 12 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | 3A |
| Voltage Rating | 200VAC, 250VDC |
| Cable Opening | 0.224" ~ 0.256" (5.70mm ~ 6.50mm) |
| Operating Temperature | -25°C ~ 125°C |
