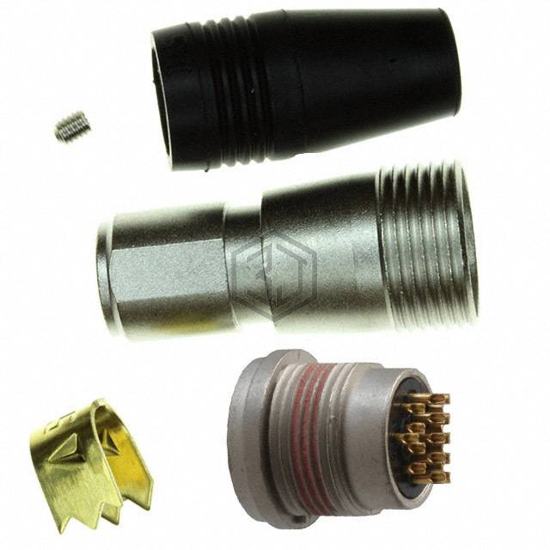

CONN JACK FMALE 20P SOLDER CUP
HR25A-9J-20S is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN JACK FMALE 20P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 30VAC, 42VDC, color Black, Silver.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack, Female Sockets |
| Number of Positions | 20 |
| Shell Size - Insert | 9 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Clamp, Strain Relief |
| Shielding | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 30VAC, 42VDC |
| Cable Opening | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for HR25A-9J-20S and get a quote within 24 hours.
