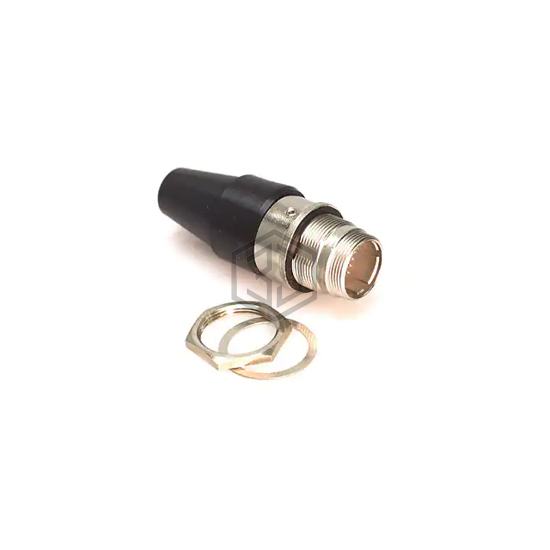

CONN JACK MALE 20P SOLDER CUP
HR22-12TJD-20P(73) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN JACK MALE 20P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line); Panel Mount, operating temperature -25°C ~ 85°C, voltage rating 100VAC, 140VDC, color Black, Silver.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack, Male Pins |
| Number of Positions | 20 |
| Shell Size - Insert | 12 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Black, Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Clamp |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A |
| Voltage Rating | 100VAC, 140VDC |
| Cable Opening | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for HR22-12TJD-20P(73) and get a quote within 24 hours.
