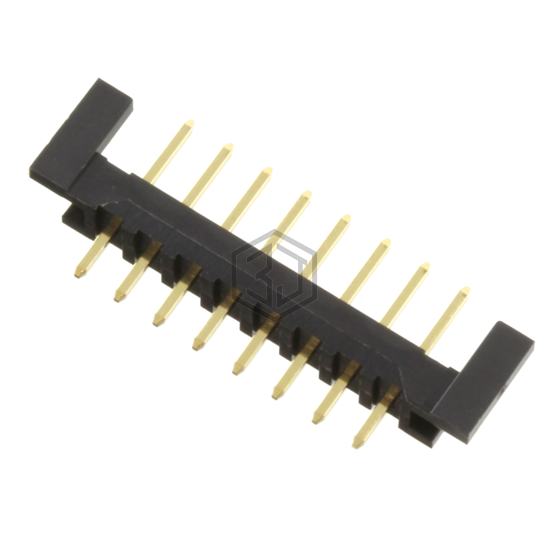

CONN HEADER VERT 8POS 2.5MM
HNC2-2.5P-8DS(02) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER VERT 8POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating 250V, contact material Brass.
In Stock: 93
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.197" (5.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.433" (11.00mm) |
| Insulation Height | 0.256" (6.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
Submit your RFQ for HNC2-2.5P-8DS(02) and get a quote within 24 hours.
