CONN HEADER R/A 52POS 1.27MM

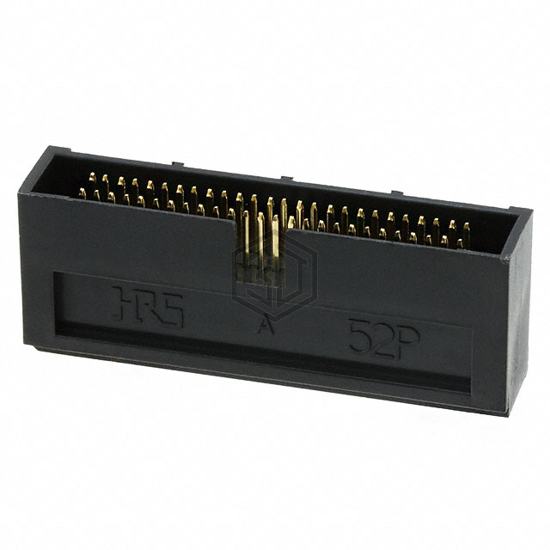

HIF6A-52PA-1.27DS(71) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER R/A 52POS 1.27MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 300V, contact material Brass.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.205" (5.21mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.335" (8.51mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 300V |
Submit your RFQ for HIF6A-52PA-1.27DS(71) and get a quote within 24 hours.
