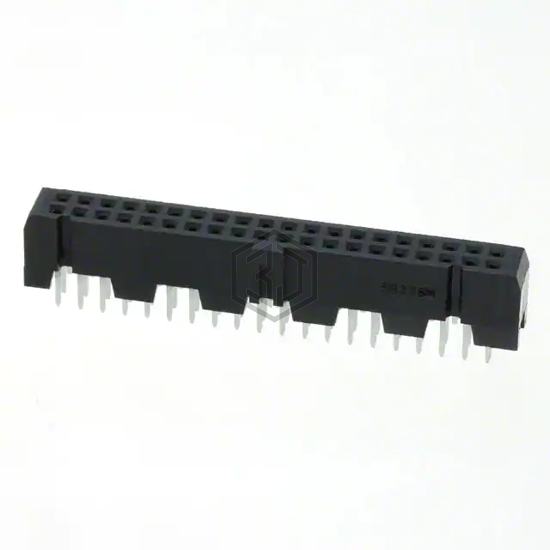

CONN RCPT 40POS 0.1 GOLD PCB
HIF3FB-40DA-2.54DSA(71) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 40POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating 200VAC, current rating (amps) 1A.
In Stock: 168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.374" (9.50mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 12.2mm |
| Ingress Protection | - |
| Features | Polarizing Key |
| Current Rating (Amps) | 1A |
| Voltage Rating | 200VAC |
