CONN HEADER VERT 10POS 2.54MM

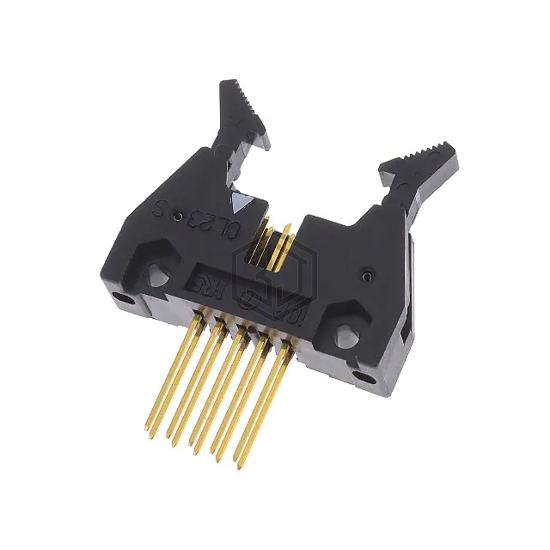

HIF3BD-10P-2.54W(63) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER VERT 10POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating 200V, contact material Brass.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Wire Wrap |
| Fastening Type | Latch Lock/Eject Hooks |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.701" (17.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 200V |
Submit your RFQ for HIF3BD-10P-2.54W(63) and get a quote within 24 hours.
