CONN PLUG FMALE 4P SOLDER CUP

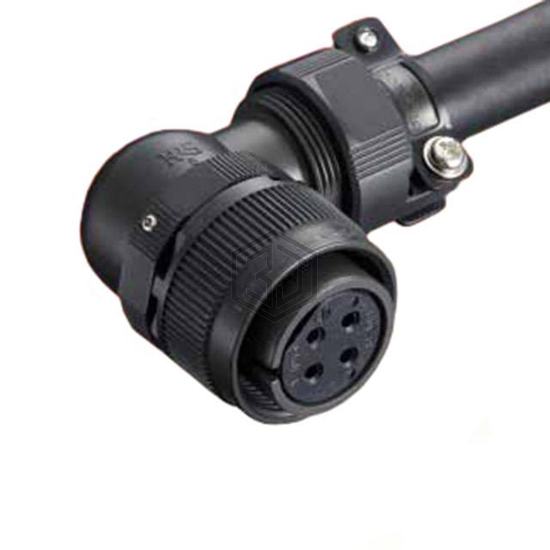

H/MS08A18-10S-DT10D(73) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG FMALE 4P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), Right Angle, operating temperature -40°C ~ 125°C, color Black, termination Solder Cup.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 (3 + PE) |
| Shell Size - Insert | 18-10 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Black Chromate |
| Contact Finish - Mating | Silver |
| Color | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut, Ground |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.472" ~ 0.563" (12.00mm ~ 14.30mm) |
| Operating Temperature | -40°C ~ 125°C |
