CONN HEADER SMD R/A 8POS 2MM

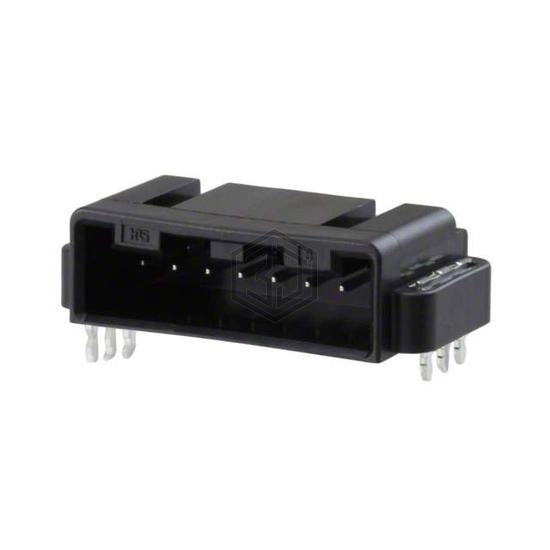

GT8E-8P-2H is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER SMD R/A 8POS 2MM. Key specifications: mounting type Surface Mount, Right Angle, contact material Brass, termination Solder, number of positions 8.
In Stock: 178
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.272" (6.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for GT8E-8P-2H and get a quote within 24 hours.
