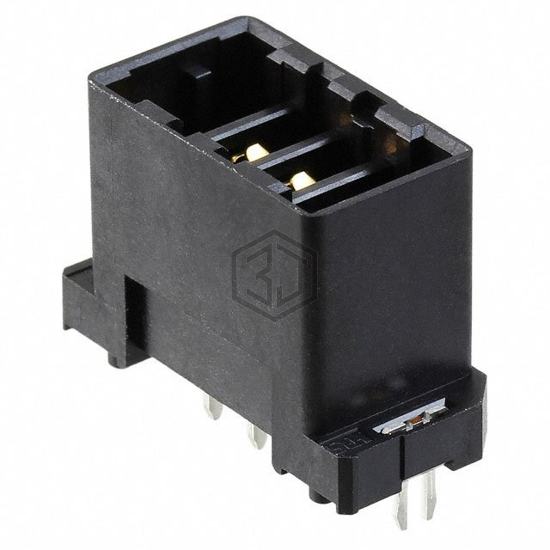

CONN RCPT 3POS 0.15 GOLD PCB
FX30B-3S-3.81DSA is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 3POS 0.15 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 250V, current rating (amps) 15A.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Blade Socket |
| Style | Board to Board |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.150" (3.81mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Insulation Color | Black |
| Insulation Height | 0.630" (16.00mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 20mm, 25mm, 30mm |
| Ingress Protection | - |
| Features | Board Guide, Board Lock |
| Current Rating (Amps) | 15A |
| Voltage Rating | 250V |
Submit your RFQ for FX30B-3S-3.81DSA and get a quote within 24 hours.
