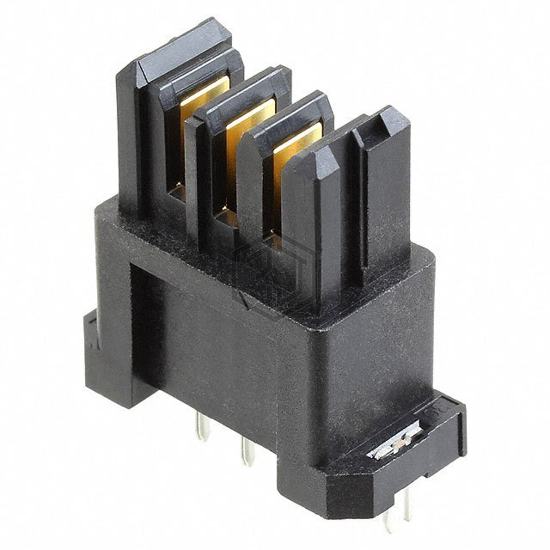

CONN HEADER VERT 3POS 3.81MM
FX30B-3P-3.81DSA30 is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER VERT 3POS 3.81MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 250V, contact material Copper Alloy.
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.150" (3.81mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.953" (24.20mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Board Lock |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 15A |
| Voltage Rating | 250V |
Submit your RFQ for FX30B-3P-3.81DSA30 and get a quote within 24 hours.
