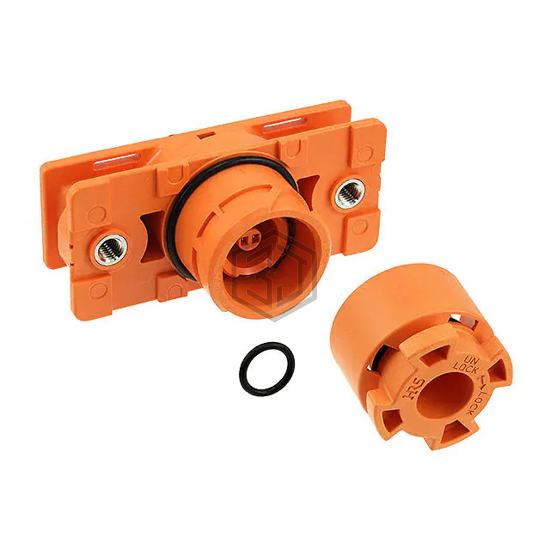

CONN CIRC 2P SILVER CRIMP SCREW
EM30MSD is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN CIRC 2P SILVER CRIMP SCREW. Key specifications: mounting type Free Hanging (In-Line); Panel Mount, operating temperature -40°C ~ 105°C, voltage rating 250VAC/DC, 1500VAC/DC, color Orange.
In Stock: 167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug and Receptacle |
| Number of Positions | 2 (1 + 1 Power) |
| Shell Size - Insert | 30 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Mounting Feature | Flange |
| Termination | Crimp, Screw |
| Fastening Type | Bayonet Lock |
| Orientation | - |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Finish | - |
| Contact Finish - Mating | Silver, Tin |
| Color | Orange |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Board Guide, Interlocking Switch |
| Shielding | Unshielded |
| Current Rating (Amps) | 1A, 200A |
| Voltage Rating | 250VAC/DC, 1500VAC/DC |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for EM30MSD and get a quote within 24 hours.
