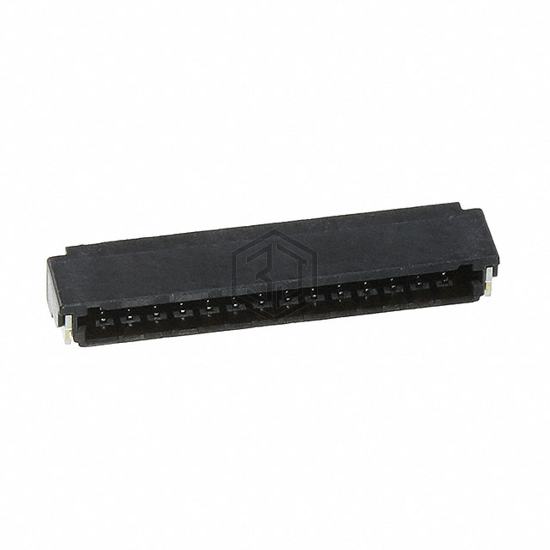

CONN SOCKET 14P 0.031 TIN SMD RA
DF52-14S-0.8H(21) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN SOCKET 14P 0.031 TIN SMD RA. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 100V, current rating (amps) 1.5A.
In Stock: 260
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Non-Gendered |
| Style | Board to Cable/Wire |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.069" (1.75mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Glow Wire Compliant, Solder Retention |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 100V |
Submit your RFQ for DF52-14S-0.8H(21) and get a quote within 24 hours.
