CONN HEADER SMD R/A 40POS 1MM

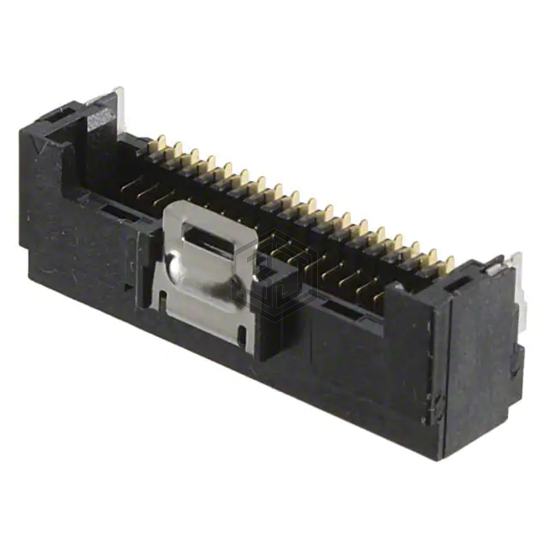

DF50-40DP-1H(51) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER SMD R/A 40POS 1MM. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -35°C ~ 85°C, voltage rating 100V, contact material Brass.
In Stock: 498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.354" (9.00mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 2.00µin (0.051µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyester |
| Features | Solder Retention |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 100V |
Submit your RFQ for DF50-40DP-1H(51) and get a quote within 24 hours.
