CONN HEADER R/A 4POS 2MM

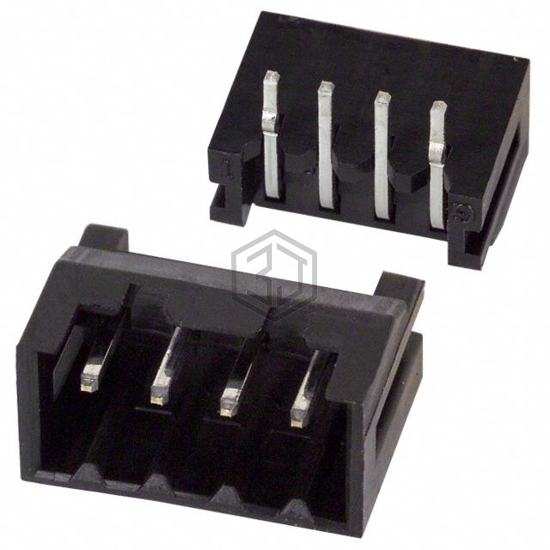

DF3A-4P-2DS is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER R/A 4POS 2MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, contact material Brass, current rating (amps) 3A.
In Stock: 48,204
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit, Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.122" (3.10mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for DF3A-4P-2DS and get a quote within 24 hours.
