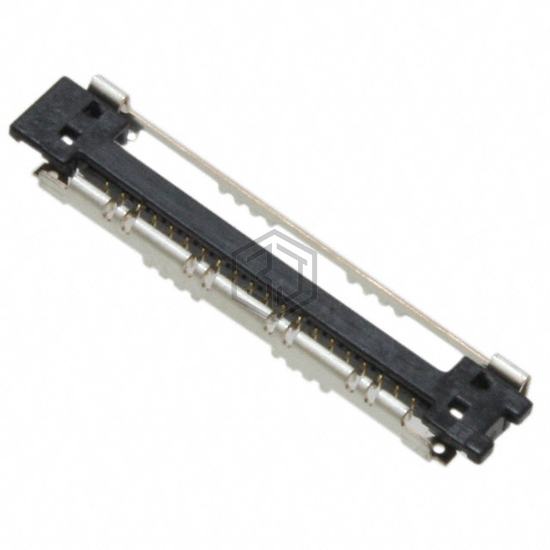

CONN RCPT 40POS 0.012 GOLD SMD
DF38A-40S-0.3V(51) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 40POS 0.012 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -35°C ~ 85°C, voltage rating 30VAC, current rating (amps) Varies by Wire Gauge.
In Stock: 4,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.012" (0.30mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Insulation Color | Black |
| Insulation Height | 0.059" (1.50mm) |
| Contact Length - Post | - |
| Operating Temperature | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place, Solder Retention |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 30VAC |
Submit your RFQ for DF38A-40S-0.3V(51) and get a quote within 24 hours.
