CONN RCPT 2POS 0.079 GOLD PCB

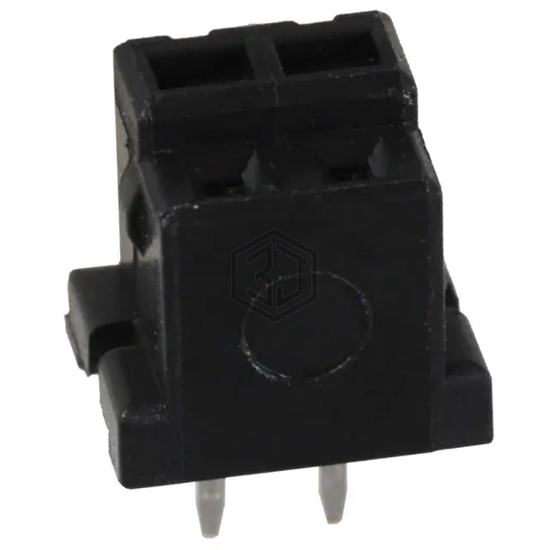

DF3-2S-2DSA(55) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 2POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage rating 30VAC, current rating (amps) 3A.
In Stock: 2,245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.232" (5.90mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 6.6mm, 7.5mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 30VAC |
Submit your RFQ for DF3-2S-2DSA(55) and get a quote within 24 hours.
