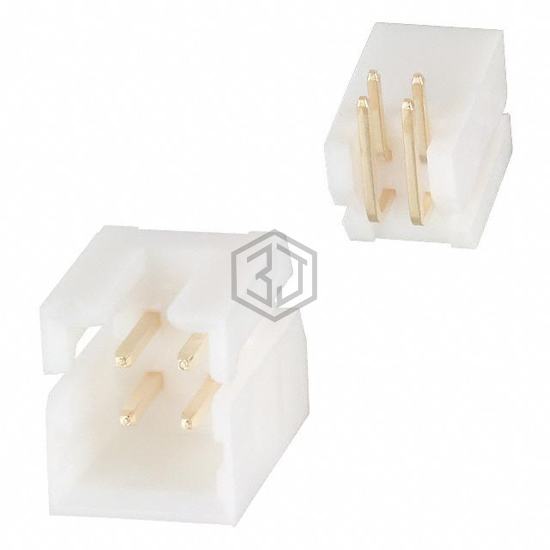

CONN HEADER R/A 4POS 2.5MM
DF1B-4DP-2.5DS(01) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER R/A 4POS 2.5MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -35°C ~ 85°C, voltage rating 250V, contact material Brass.
In Stock: 8,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.098" (2.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.177" (4.50mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.339" (8.61mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Keying Slot |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
Submit your RFQ for DF1B-4DP-2.5DS(01) and get a quote within 24 hours.
