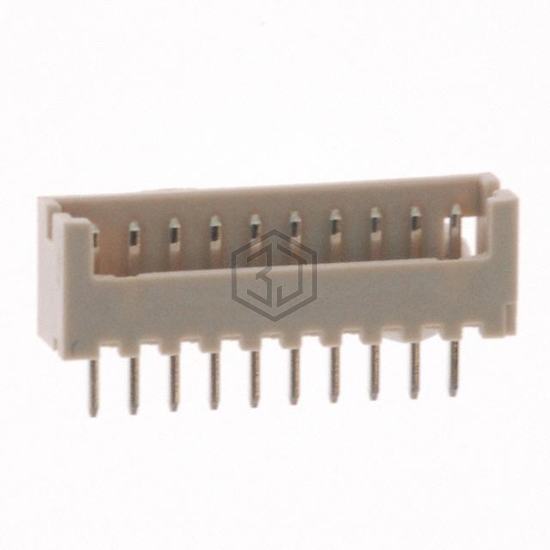

CONN HEADER VERT 10POS 1.25MM
DF13-10P-1.25DSA is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER VERT 10POS 1.25MM. Key specifications: mounting type Through Hole, operating temperature -35°C ~ 85°C, voltage rating 150V, contact material Brass.
In Stock: 1,265
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.091" (2.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.169" (4.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 1A |
| Voltage Rating | 150V |
Submit your RFQ for DF13-10P-1.25DSA and get a quote within 24 hours.
