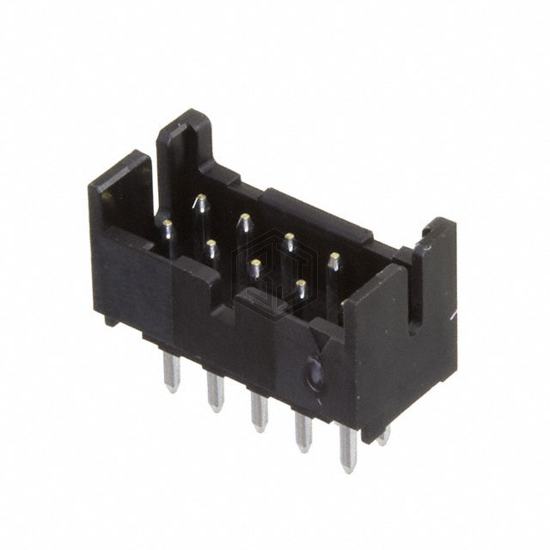

CONN HEADER VERT 10POS 2MM
DF11E-10DP-2DSA is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER VERT 10POS 2MM. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage rating 250V, contact material Brass.
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.118" (3.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.299" (7.60mm) |
| Insulation Height | 0.260" (6.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250V |
Submit your RFQ for DF11E-10DP-2DSA and get a quote within 24 hours.
