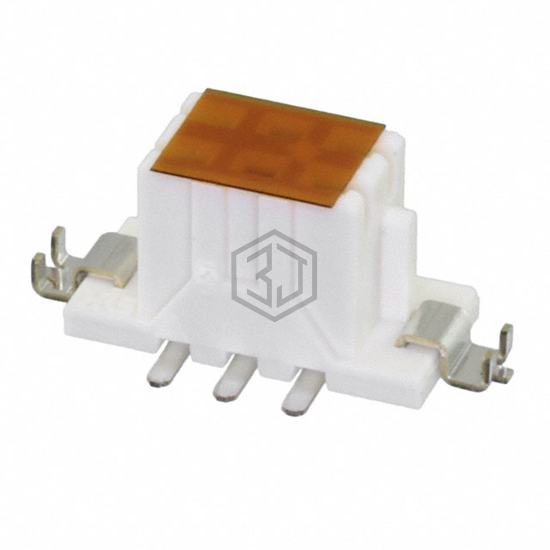

CONN RCPT 6POS 0.079 TIN SMD
DF11CZ-6DS-2V(22) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 6POS 0.079 TIN SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage rating 250V, current rating (amps) 2A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Insulation Color | Beige |
| Insulation Height | 0.234" (5.95mm) |
| Contact Length - Post | - |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 7.55mm, 8.2mm |
| Ingress Protection | - |
| Features | Pick and Place, Solder Retention |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250V |
