CONN HEADER VERT 4POS 2.5MM

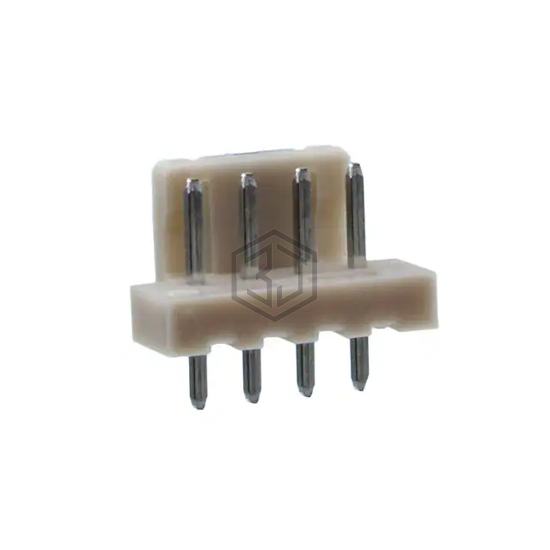

DF1-4P-2.5DSA(05) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER VERT 4POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage rating 250V, contact material Brass.
In Stock: 11,641
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.177" (4.50mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.394" (10.00mm) |
| Insulation Height | 0.295" (7.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Brown |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
Submit your RFQ for DF1-4P-2.5DSA(05) and get a quote within 24 hours.
