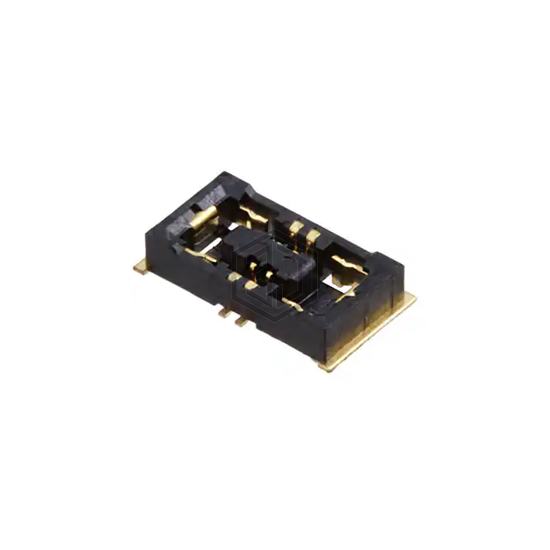

CONN RCPT 6POS 0.016 GOLD SMD
BM22-6S-V(53) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 6POS 0.016 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -35°C ~ 85°C, voltage rating 50V, current rating (amps) 0.3A Signal, 4A Power.
In Stock: 1,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to FPC |
| Number of Positions | 6 (4 + 2 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.016" (0.40mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
| Insulation Color | Black |
| Insulation Height | 0.035" (0.90mm) |
| Contact Length - Post | - |
| Operating Temperature | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 0.9mm |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 0.3A Signal, 4A Power |
| Voltage Rating | 50V |
Submit your RFQ for BM22-6S-V(53) and get a quote within 24 hours.
