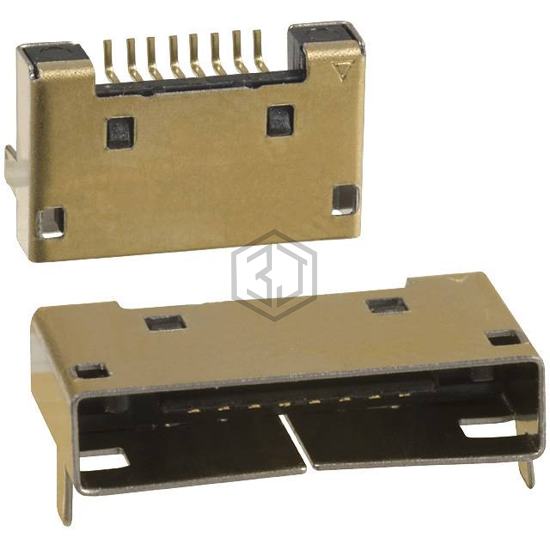

CONN RCPT 8P 0.031 GOLD SMD R/A
3260-8S3(55) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 8P 0.031 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage rating 125VAC, current rating (amps) 500mA, termination Solder.
In Stock: 1,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.114" (2.90mm) |
| Contact Length - Post | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Shielded |
| Current Rating (Amps) | 500mA |
| Voltage Rating | 125VAC |
Submit your RFQ for 3260-8S3(55) and get a quote within 24 hours.
