DC DC CONVERTER 1W

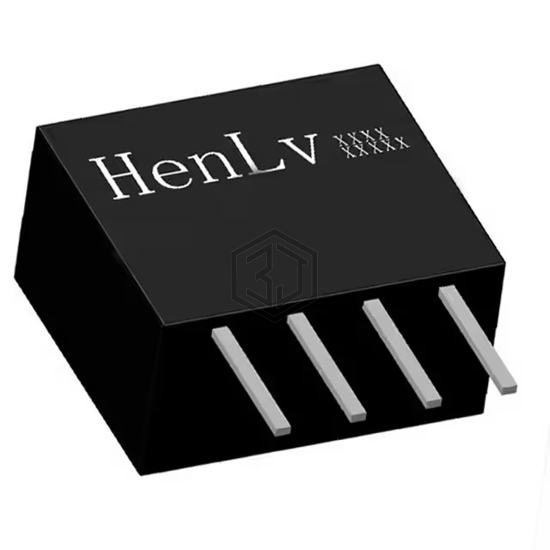

B05S05-1WH2 is a DC DC Converters manufactured by HenLv Power. DC DC CONVERTER 1W. Key specifications: mounting type Through Hole, package / case 4-SIP Module, current - output (max) 200mA, size / dimension 0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | - |
| Voltage - Input (Max) | 5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | - |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.24" W x 0.39" H (11.7mm x 6.0mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for B05S05-1WH2 and get a quote within 24 hours.
