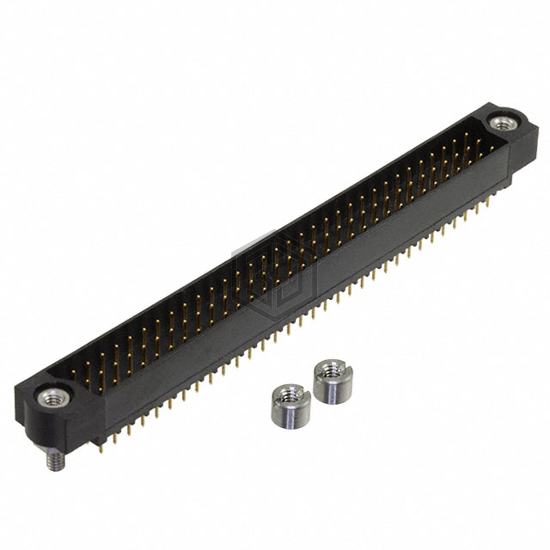

CONN HEADER VERT 96POS 2MM
M83-LMT1M2N96-0000-000 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER VERT 96POS 2MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 120V, contact material Phosphor Bronze.
In Stock: 409
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.240" (6.10mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.2A per Contact |
| Voltage Rating | 120V |
Submit your RFQ for M83-LMT1M2N96-0000-000 and get a quote within 24 hours.
