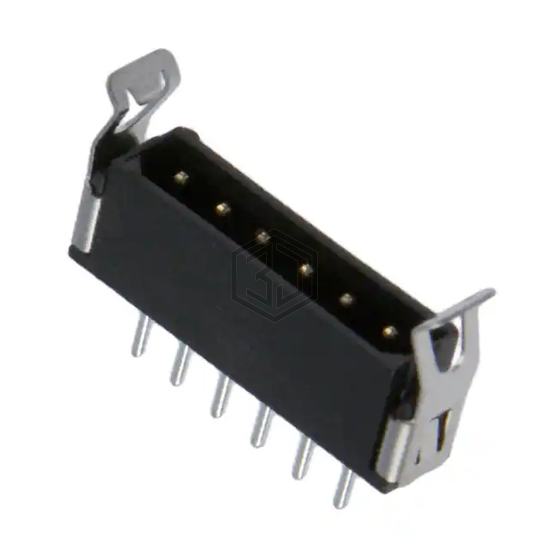

CONN HEADER VERT 6POS 2MM
M80-8820642 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER VERT 6POS 2MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 800V, contact material Phosphor Bronze.
In Stock: 1,572
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.219" (5.56mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.2A |
| Voltage Rating | 800V |
Submit your RFQ for M80-8820642 and get a quote within 24 hours.
