CONN RCPT 26POS 0.079 GOLD SMD

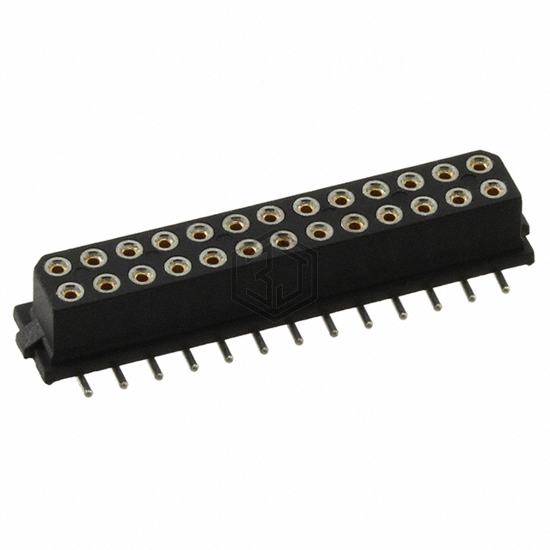

M80-6812642 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 26POS 0.079 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 120V, termination Solder.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Insulation Color | Black |
| Insulation Height | 0.220" (5.60mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 7.85mm, 8.45mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 120V |
Submit your RFQ for M80-6812642 and get a quote within 24 hours.
