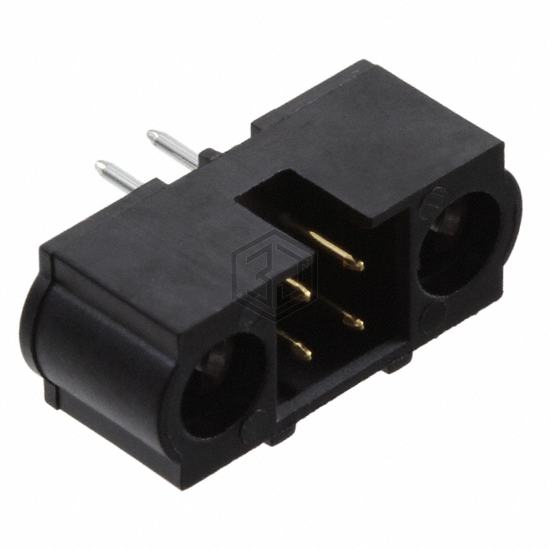

CONN HEADER VERT 4POS 2MM
M80-5T10442MC is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER VERT 4POS 2MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 121°C, voltage rating 120V, contact material Phosphor Bronze.
In Stock: 132
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Turn Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Keying Slot, Mating Flange |
| Operating Temperature | -55°C ~ 121°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.2A |
| Voltage Rating | 120V |
Submit your RFQ for M80-5T10442MC and get a quote within 24 hours.
