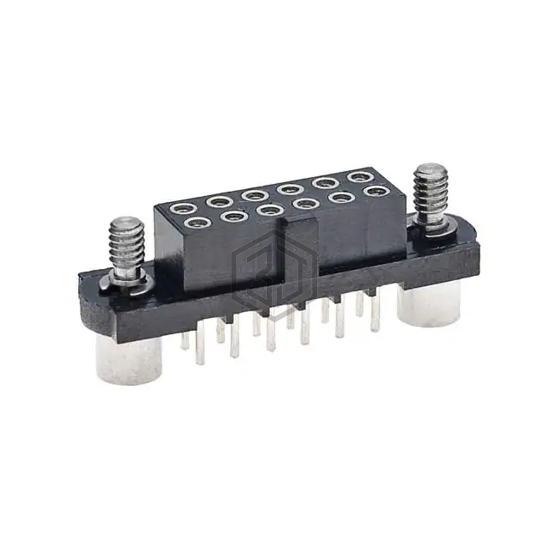

CONN RCPT 14POS 0.079 GOLD PCB
M80-4201442 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 14POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 120V, termination Solder.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Insulation Color | Black |
| Insulation Height | 0.205" (5.20mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 7.3mm, 7.55mm |
| Ingress Protection | - |
| Features | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
| Current Rating (Amps) | - |
| Voltage Rating | 120V |
Submit your RFQ for M80-4201442 and get a quote within 24 hours.
