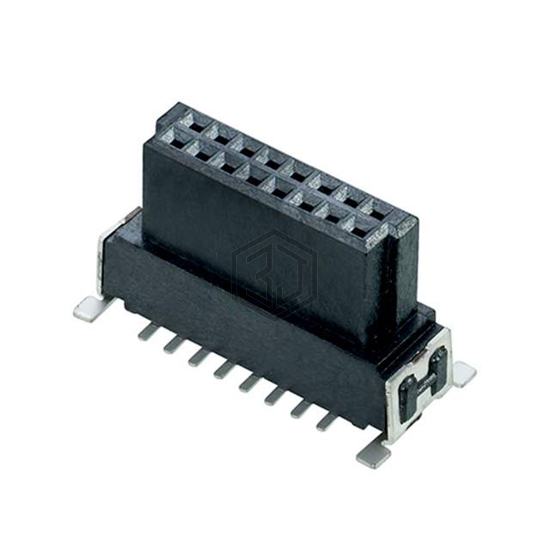

CONN RCPT 16POS 0.05 GOLD SMD
M55-6011642R is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 16POS 0.05 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 100VAC, current rating (amps) 1.2A.
In Stock: 252
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Insulation Color | Black |
| Insulation Height | 0.356" (9.05mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 10.8mm, 12.3mm, 13.9mm |
| Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention |
| Current Rating (Amps) | 1.2A |
| Voltage Rating | 100VAC |
Submit your RFQ for M55-6011642R and get a quote within 24 hours.
