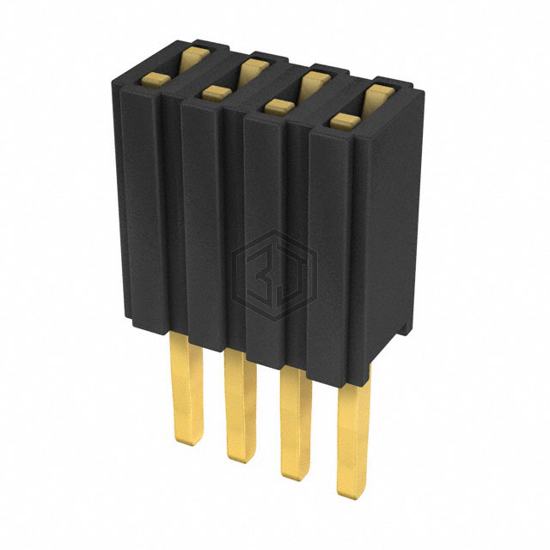

CONN RCPT 4POS 0.05 GOLD PCB
M52-5000445 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 4POS 0.05 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, current rating (amps) 1A, termination Solder.
In Stock: 5,450
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.181" (4.60mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 7.1mm, 8.37mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for M52-5000445 and get a quote within 24 hours.
