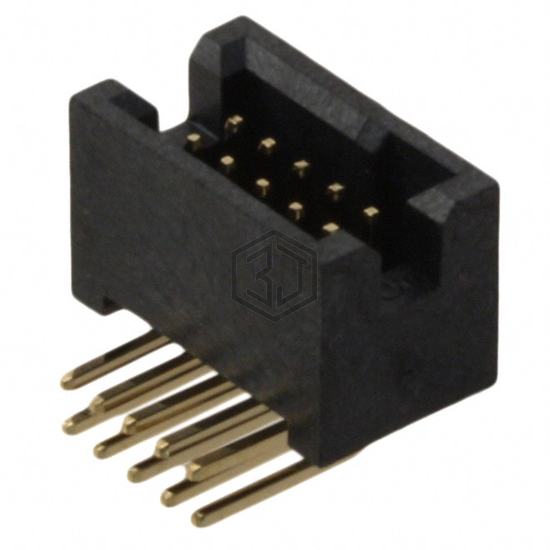

CONN HEADER R/A 10POS 1.27MM
M50-4800545 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER R/A 10POS 1.27MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, contact material Copper Alloy, current rating (amps) 1A per Contact.
In Stock: 735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.083" (2.11mm) |
| Overall Contact Length | - |
| Insulation Height | 0.222" (5.65mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A per Contact |
| Voltage Rating | - |
