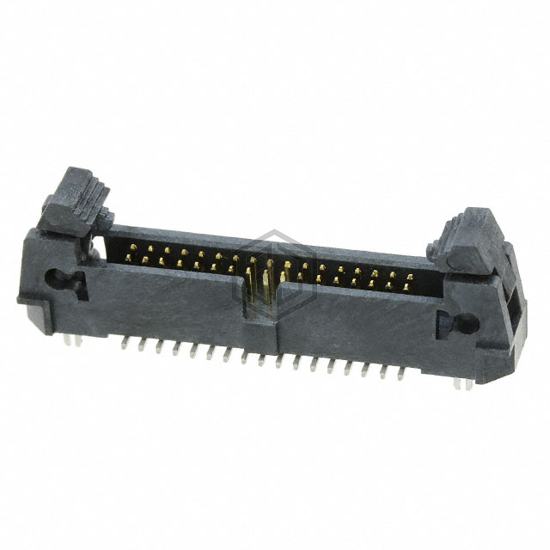

CONN HEADER SMD 34POS 1.27MM
M50-3651742R is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER SMD 34POS 1.27MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, contact material Brass, current rating (amps) 1.75A per Contact.
In Stock: 3,125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks |
| Contact Length - Mating | 0.120" (3.05mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.325" (8.25mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Lock, Keying Slot, Pick and Place |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.75A per Contact |
| Voltage Rating | - |
Submit your RFQ for M50-3651742R and get a quote within 24 hours.
