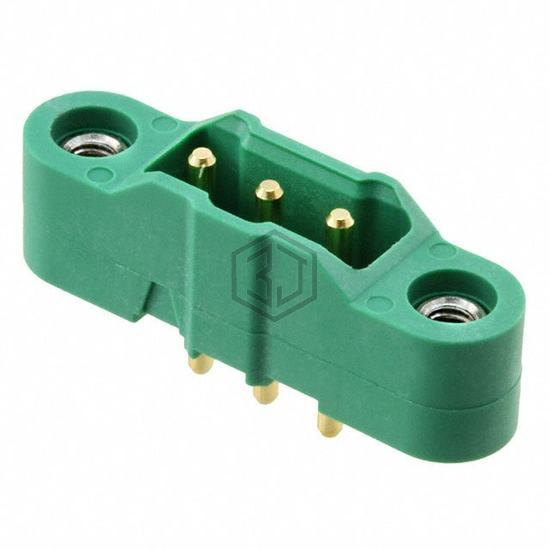

CONN HEADER VERT 3POS 3MM
M300-MV10345M1 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER VERT 3POS 3MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C, voltage rating 600VAC/DC, contact material Brass.
In Stock: 1,353
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin, Power |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.276" (7.00mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | Mating Flange |
| Operating Temperature | -65°C ~ 175°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Green |
| Current Rating (Amps) | 10A |
| Voltage Rating | 600VAC/DC |
Submit your RFQ for M300-MV10345M1 and get a quote within 24 hours.
