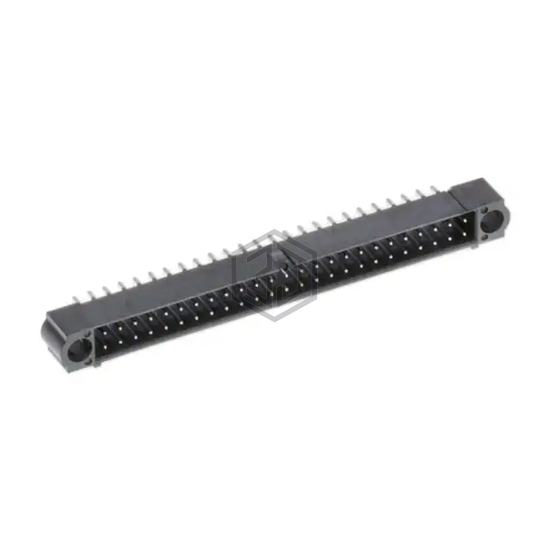

CONN HEADER VERT 50POS 2MM
M225-5205046 is a Rectangular Connectors - Headers, Male Pins manufactured by Harwin Inc.. CONN HEADER VERT 50POS 2MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Phosphor Bronze, current rating (amps) 3A.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-In |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Mating Flange, Polarizing Key |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for M225-5205046 and get a quote within 24 hours.
