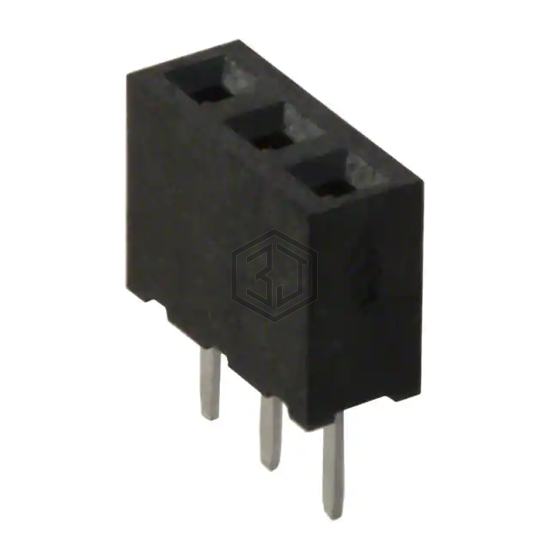

CONN RCPT 3POS 0.079 GOLD PCB
M22-7130342 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 3POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 500VAC, current rating (amps) 2A.
In Stock: 7,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.173" (4.40mm) |
| Contact Length - Post | 0.094" (2.40mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 5.9mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 500VAC |
Submit your RFQ for M22-7130342 and get a quote within 24 hours.
