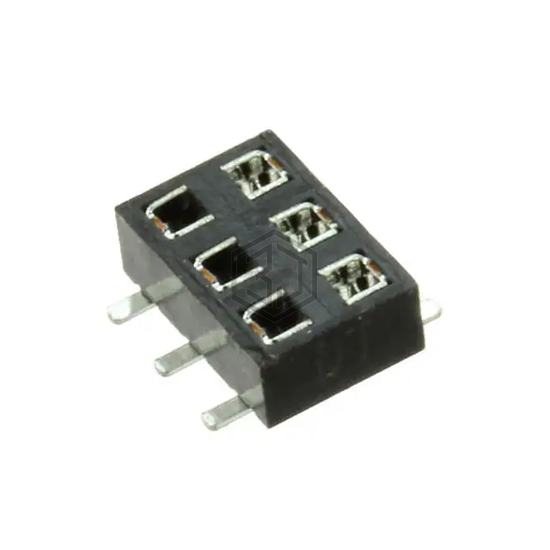

CONN RCPT 6POS 0.079 TIN SMD
M22-6360346 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Harwin Inc.. CONN RCPT 6POS 0.079 TIN SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, current rating (amps) 2A, termination Solder.
In Stock: 1,293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.079" (2.00mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 3.6mm, 4.35mm, 4.6mm |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for M22-6360346 and get a quote within 24 hours.
